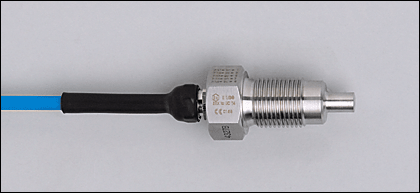

SFR12ADB/1/2G /6M, SF311A, IFM

Kat. číslo: SF311A

Výrobce: IFM

Na dotaz

Naše cena bez DPH: 13 951,80 Kč
s DPH 21 %: 16 881,68 Kč

Popis

Application

liquids and gases

Internal capacitance [nF]

1.2

Internal inductance [µH]

Connection to control monitor

VS2000 Exi (PTB 01 ATEX 2075)

Max. temperature gradient of medium [K/min]

Pressure rating [bar]

300

Liquids

Medium temperature [°C]

-20...60

Setting range [cm/s]

3...300

Greatest sensitivity [cm/s]

3...60

Gases

Medium temperature [°C]

-20...60

Setting range [cm/s]

200...2000 *)

Greatest sensitivity [cm/s]

200...800 *)

Response time [s]

1...10

Temperature class

Protection

IP 67

Shock resistance

DIN IEC 68-2-27:

40 g (11 ms)

Vibration resistance

DIN IEC 68-2-6:

10 g (55...2000 Hz)

Approval

DMT 03 ATEX E 090 X
TIIS TC17434
IECEx BVS 11.0017 X

Marking of the unit

II 1/2G Ex ia IIC T4 Ga/Gb4

MTTF [Years]

8648

Housing materials

stainless steel 316L / 1.4404

Materials (wetted parts)

stainless steel 316L / 1.4404

Connection

TPE-S cable / 6 m; 5 x 0.34 mm²

Max. cable length [m]

100 (5 x 0.5mm²)

Weight [kg]

0.446

Remarks

In principle, the type test according to 94/9/EC (ATEX) only takes atmospheric conditions (0.8...1.1 bar) into account. For pressures outside this range use must be assessed and approved by the user. Adhere to the operating instructions and the type test certificate.

*) referred to air

Technické parametry

Objednací kód	SF311A
Výrobce	IFM
