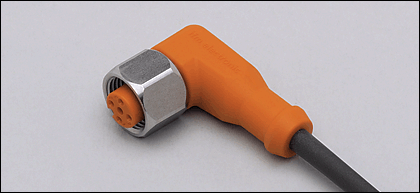

ADOAH040VAT0025H04/3G/2D, EVC14A, IFM
Na dotaz
- Naše cena bez DPH
- 1 101,70 Kč
- s DPH 21 %
- 1 333,06 Kč
HS Code (Taric) 85444290
Země původu DE
Popis
| Electrical design | AC/DC | |||||||
| Operating voltage [V] | 60 AC / 60 DC | |||||||
| Current rating [A] | 2 | |||||||
| Design | angled | |||||||
| Ambient temperature [°C] | -20...60 | |||||||
| Protection | IP 67 *), II | |||||||
| Approval | BVS 08 ATEX E 109 U IECEx BVS 08.0041 U | |||||||
| Marking of the unit | II 3G Ex nA II II 2D Ex tD A21 IP67 | |||||||
| Material body | housing: TPU orange; sealing: Viton | |||||||
| Material nut | stainless steel 316L / 1.4404 | |||||||
| Tightening torque for knurled nut [Nm] | 1.2...1.5 | |||||||
| Connection | PUR cable / 25 m; 4 x 0.34 mm² (42 x Ø 0.1 mm); Ø 4.9 mm; halogen-free | |||||||
| Sheath colour | black | |||||||
| Weight [kg] | 0.8 | |||||||
| Remarks |
| |||||||
Technické parametry
| Objednací kód | EVC14A |
|---|---|
| Výrobce | IFM |
