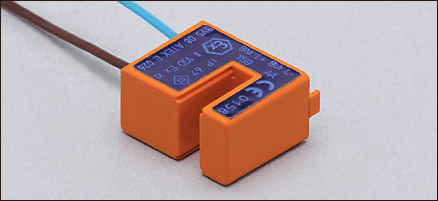

I7S23,5-N /1G/1D, N7S21A, IFM
Na dotaz
- Naše cena bez DPH
- 956,80 Kč
- s DPH 21 %
- 1 157,73 Kč
Popis
| Electrical design | Connection to certified intrinsically safe circuits with the max. values U = 15 V / I = 50 mA / P = 120 mW | |||||||
| Output | normally closed | |||||||
| Nominal voltage [V] | 8.2 DC (1kΩ) | |||||||
| Supply voltage [V] | 5...25 DC when used outside the hazardous area | |||||||
| Current consumption [mA] | < 1.2 *) | |||||||
| Internal capacitance [nF] | < 150 | |||||||
| Internal inductance [µH] | < 150 | |||||||
| Hysteresis [%] | 0...0.05 | |||||||
| Switching frequency [Hz] | 3000 | |||||||
| Ambient temperature [°C] | -40...100 | |||||||
| Protection | IP 67, III | |||||||
| EMC |
| |||||||
| MTTF [Years] | 2942 | |||||||
| Approval | BVS 08 ATEX E026 IECEx BVS 09.0016 | |||||||
| Marking of the unit | II 1G Ga Ex ia IIC T4 CE0158 II 1D Ex iaD 20 T 125°C | |||||||
| Housing materials | PBT | |||||||
| Connection | PTFE cable / 0.065 m; 2 x 0.14 mm²; with DUBOX connector, (FCI connector housing type Dubox 65240-003LF, FCI socket contact type Dubox 76347-301LF) | |||||||
| Weight [kg] | 0.03 | |||||||
| Remarks |
| |||||||
| Accessories (included) | 1 flathead screw M1.6 x 10 mm, st. steel, 1 hexagon nut M1.6 | |||||||
Technické parametry
| Objednací kód | N7S21A |
|---|---|
| Výrobce | IFM |
