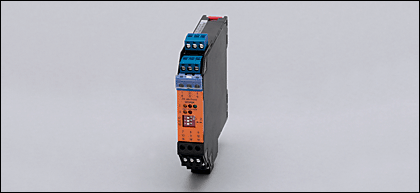

NV1222/24VDC/TR/1D/1G, N0534A, IFM
Na dotaz
- Naše cena bez DPH
- 4 841,50 Kč
- s DPH 21 %
- 5 858,22 Kč
Popis
| Electrical design | DC | ||||
| Output | 2 transistor outputs PNP (100 mA, short-circuit protection) | ||||
| Operating voltage [V] | 24 DC | ||||
| Voltage tolerance [%] | -15 /+25 | ||||
| Voltage drop [V] | < 3.5 | ||||
| Current consumption [mA] | < 50 | ||||
| Control circuit | |||||
| Voltage [V] | 10.5 | ||||
| Current [mA] | 13 | ||||
| Power [mW] | 34 | ||||
| in protection rating intrinsic safety | |||||
| EEx ia | IIC | IIB | |||
| External inductance | 200 mH | 740 mH | |||
| External capacitance | 2.4 µF | 16.8 µF | |||
| EEx ib | IIC | IIB | |||
| External inductance | 200 mH | 740 mH | |||
| External capacitance | 2.4 µF | 16.8 µF | |||
N0534A | |||||
| Switching frequency [Hz] | 5000 | ||||
| Switch points | 1.2...2.1 mA | ||||
| EMC | EN 50081-2 1993 / EN 50082-2 1995 | ||||
| Ambient temperature [°C] | -20...60 | ||||
| Protection | IP 20 | ||||
| Approval | PTB 02 ATEX 2037 TIIS TC16049 | ||||
| Marking of the unit | II (1) G D [EEx ia] IIC | ||||
| Function display | |||||
| Switching status LED | 2 x yellow | ||||
| Operation LED | green | ||||
| Function LED | 2 x red | ||||
| Connection | terminals up to 2.5 mm² | ||||
| Weight [kg] | 0.167 | ||||
| Remarks |
| ||||
| GB N0534A 12.07.2004 | |||||
Technické parametry
| Objednací kód | N0534A |
|---|---|
| Výrobce | IFM |
