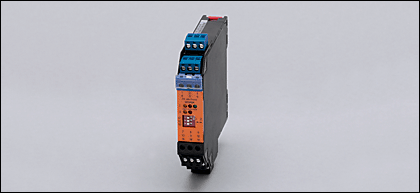

NV1121/24VDC/RL/1D/1G, N0530A, IFM
Na dotaz
- Naše cena bez DPH
- 3 522,45 Kč
- s DPH 21 %
- 4 262,16 Kč
Popis
| Electrical design | DC | ||||
| Output | relay (1 changeover contact) | ||||
| Operating voltage [V] | 24 DC | ||||
| Voltage tolerance [%] | -15 /+25 | ||||
| Current consumption [mA] | < 23 | ||||
| Control circuit | |||||
| Voltage [V] | 10.5 | ||||
| Current [mA] | 13 | ||||
| Power [mW] | 34 | ||||
| in protection rating intrinsic safety | |||||
| EEx ia | IIC | IIB | |||
| External inductance | 210 mH | 840 mH | |||
| External capacitance | 2.41 µF | 16.8 µF | |||
| EEx ib | IIC | IIB | |||
| External inductance | 210 mH | 840 mH | |||
| External capacitance | 2.41 µF | 16.8 µF | |||
N0530A | |||||
| Switching frequency [Hz] | 10 | ||||
| Contact rating | 253 V AC / 2 A / cos phi > 0.7 // 40 V DC / 2 A ohmic load | ||||
| Switch points | 1.2...2.1 mA | ||||
| EMC | EN 50081-2 1993 / EN 50082-2 1995 | ||||
| Ambient temperature [°C] | -20...60 | ||||
| Protection | IP 20 | ||||
| Approval | PTB 02 ATEX 2036 | ||||
| Marking of the unit | II (1) G D [EEx ia] IIC | ||||
| Function display | |||||
| Switching status LED | yellow | ||||
| Operation LED | green | ||||
| Function LED | red | ||||
| Connection | terminals up to 2.5 mm² | ||||
| Weight [kg] | 0.162 | ||||
| Remarks |
| ||||
| GB N0530A 06.03.2003 | |||||
Technické parametry
| Objednací kód | N0530A |
|---|---|
| Výrobce | IFM |
