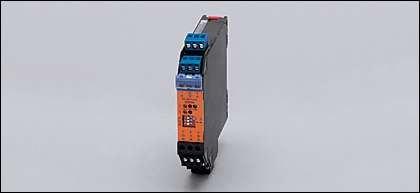

NV1221/230VAC/RL/1D/1G, N0033A, IFM
Na dotaz
- Naše cena bez DPH
- 4 103,20 Kč
- s DPH 21 %
- 4 964,87 Kč
Popis
| Electrical design | AC | ||||
| Output | relay (1 changeover contact per channel) | ||||
| Operating voltage [V] | 230 AC (45...65 Hz) | ||||
| Voltage tolerance [%] | -10 / +10 | ||||
| Power consumption [VA] | 1.3 | ||||
| Control circuit | |||||
| Voltage [V] | 10.6 | ||||
| Current [mA] | 19.1 | ||||
| Power [mW] | 51 | ||||
| in protection rating intrinsic safety | |||||
| EEx ia | IIC | IIB | |||
| External inductance | 97 mH | 390 mH | |||
| External capacitance | 2.32 µF | 16.2 µF | |||
| EEx ib | IIC | IIB | |||
| External inductance | 97 mH | 390 mH | |||
| External capacitance | 2.32 µF | 16.2 µF | |||
N0033A | |||||
| Switching frequency [Hz] | 10 | ||||
| Contact rating | 253 V AC / 2 A / cos phi > 0.7 // 40 V DC / 2 A ohmic load | ||||
| Switch points | 1.2...2.1 mA | ||||
| EMC | EN 50081-2 1993 / EN 50082-2 1995 | ||||
| Ambient temperature [°C] | -20...60 | ||||
| Protection | IP 20 | ||||
| Approval | PTB 02 ATEX 2035 TIIS TC16048 | ||||
| Marking of the unit | II (1) G D [EEx ia] IIC | ||||
| Function display | |||||
| Switching status LED | 2 x yellow | ||||
| Operation LED | green | ||||
| Function LED | 2 x red | ||||
| Connection | terminals up to 2.5 mm² | ||||
| Weight [kg] | 0.208 | ||||
| Remarks |
| ||||
| GB N0033A 29.04.2009 | |||||
Technické parametry
| Objednací kód | N0033A |
|---|---|
| Výrobce | IFM |
