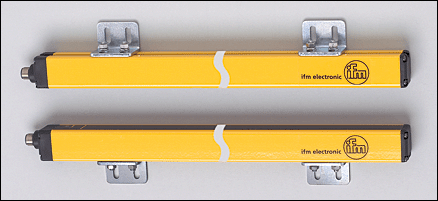

OYA0760-30-4-20-P-1, OY245S, IFM
Naše cena:
bez DPH 73.826,50 Kč
s DPH 89.330,07 Kč
s DPH 89.330,07 Kč
Výrobce: IFM
Dostupnost: Na dotaz
Kat. číslo:OY245S
- Popis produktu
- Dotaz
- Doporučit známému
Length L [mm] | 813 | |||||||||||
Electrical design | DC PNP | |||||||||||
Operating voltage [V] | 24 DC (19.2...28.8) | |||||||||||
Short-circuit protection | yes | |||||||||||
Reverse polarity protection | yes | |||||||||||
Current consumption | ||||||||||||
Transmitter [mA] | 42 | |||||||||||
Receiver [mA] | 83 | |||||||||||
Outputs (OSSDs) | 2 x PNP | |||||||||||
Max. current load per output [mA] | 400 (24 V) | |||||||||||
Protected area height [mm] | 760 | |||||||||||
Resolution (detection capacity d) [mm] | 30 | |||||||||||
Protected area width (range) [m] | 0...10 / 3...20 | |||||||||||
Response time [ms] | 6.5 | |||||||||||
Power-on delay time [s] | < 2 | |||||||||||
ESPE type to IEC 61496 | 4 | |||||||||||
Mission time TM [h] | 175200 | |||||||||||
Test interval T1 [Years] | 20 | |||||||||||
Safety-related reliability PFHd [1/h] | 1.4E-08 | |||||||||||
MTTFd [Years] | 100 | |||||||||||
DC/CCF/Cat. | 94.7 % / 80 % / 4 | |||||||||||
OY245S | ||||||||||||
EMC |
| |||||||||||
Vibration resistance |
| |||||||||||
Shock resistance |
| |||||||||||
Ambient temperature [°C] | -10...55 | |||||||||||
Max. relative air humidity [%] | 95 | |||||||||||
Applications | Class C to EN 60654-1 weatherproof application | |||||||||||
Protection | IP 65 / IP 67, III | |||||||||||
Housing materials | housing: aluminium; window: PC | |||||||||||
Type of light | Infrared light 950 nm | |||||||||||
Display |
| |||||||||||
Max. connection cable length [m] | 100 *) | |||||||||||
Transmitter | ||||||||||||
Connection | M12 connector | |||||||||||
Receiver | ||||||||||||
Connection | M12 connector | |||||||||||
Wiring
| ||||||||||||
Weight [kg] | 2.98 | |||||||||||
Remarks |
| |||||||||||
Accessories (included) | 4 mounting brackets, 4 mounting nuts, nuts | |||||||||||
We reserve the right to make technical alterations without prior notice. GB OY245S 07.06.2010 | ||||||||||||
